Danfoss MT28-4VM 压缩机 + Valve Set


Danfoss MT28-4VM Maneurop Reciprocating Compressor (MT28JE4AVE) + Valve Set

Made in FRANCE

Model code/ Name Reciprocating compressor, MT28JE4AVE
Code number MT28-4VM
Description Refrigerant: R22, Segment usage: Air conditioning; Refrigeration MT, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60
Gross weight 24.25 kg
Net weight 23 kg
EAN 5702428662420
Approval standard CCC, CE, UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 1
Description MT028-4
Diameter [mm] 224 mm
Discharge connection height [mm] 68 mm
Discharge connection mounting torque [Nm] 80 N-m
Discharge connection pipe size [in] 3/8 in
Discharge connection rotolock size [in] 1 in
Discharge connection size [in] 1 in
Discharge connection sleeve pipe size [in] 3/8 in

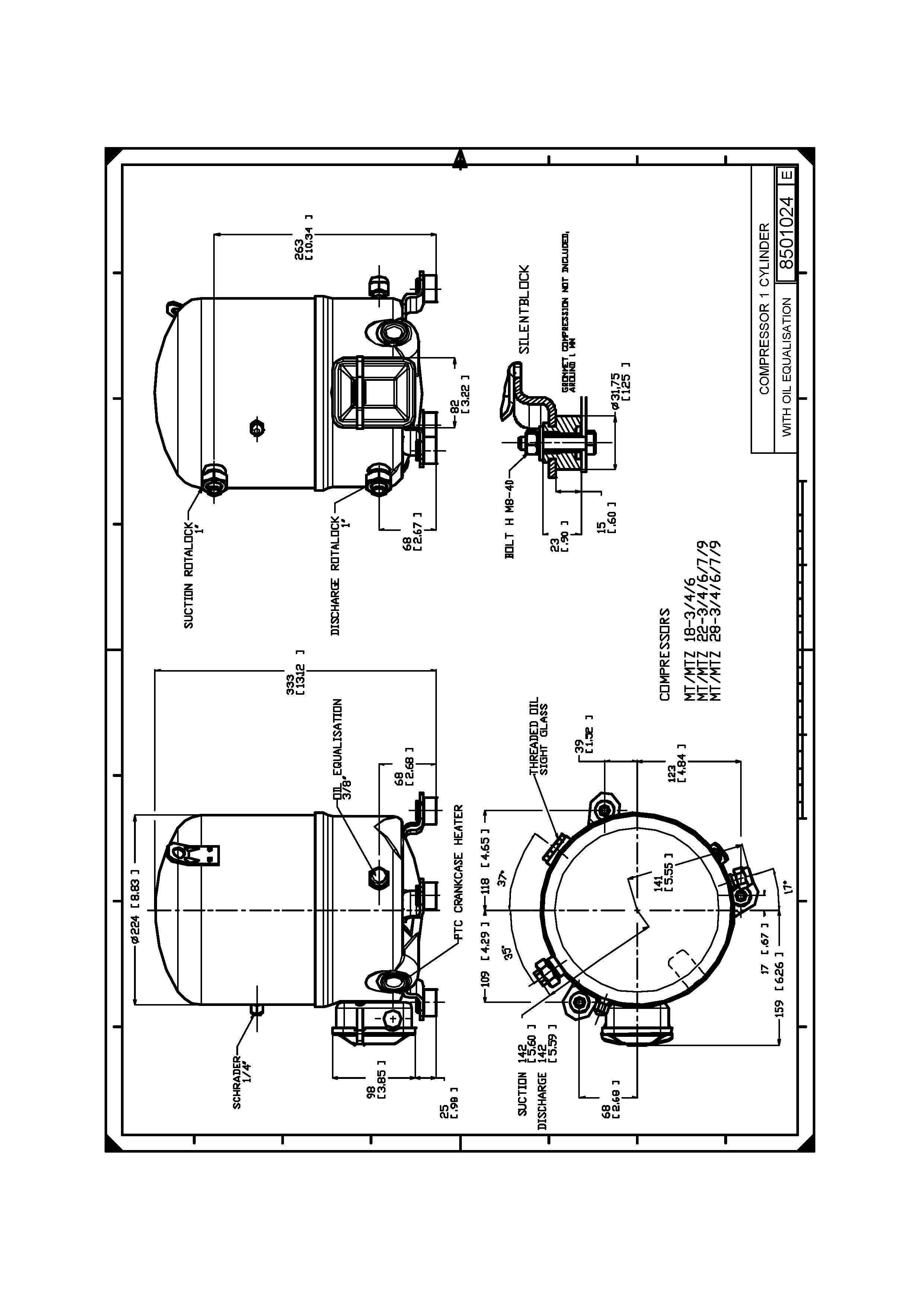

Drawing number 8501024e
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code A
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 29.4 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.3 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP55 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 7.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 29 A
MCC 7.5 A
Model number MT28JE4AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 N-m
Nominal cooling capacity 60 kBTU/h 30.38 kBtu/h
Nominal cooling capacity at 50Hz 6.7 kW
Nominal cooling capacity at 60Hz 8.9 kW
Number of starts per hour [Max] 12
Oil charge [L] 0.95 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160P
Packaging height [mm] 500 mm
Packaging length [mm] 1150 mm
Packaging weight [Kg] 325 kg
Packaging width [mm] 800 mm
Packing format Industrial pack
Packing quantity 12
Phase 3
Power connections Spade
Refrigerant R22
Refrigerant charge [kg] [Max] 2.5 kg
Relief valve None
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning, Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 263 mm
Suction connection mounting torque [Nm] 80 N-m
Suction connection pipe size [in] 1/2 in
Suction connection rotolock size [in] 1 in
Suction connection size [in] 1 in
Suction connection sleeve pipe size [in] 1/2 in
Swept volume [cm3] 48.06 cm³
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 333 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 6.3 Ohm

$5,800.00
