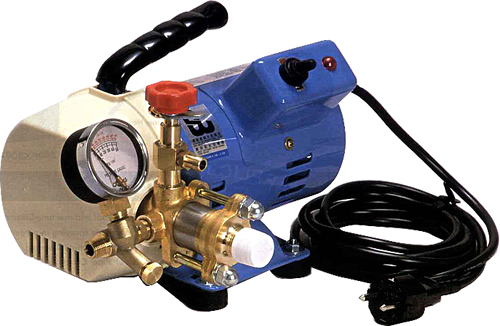

KYOWA KYC-20A JET CLEANPAK

KYOWA KYC-20A JET CLEANPAK

Made in Japan

New and Striking Pumps for Cleaning Applications from KYOWA!
“KYOWA” JET CLEANER KYC-20A with Unique Pumping Mechanism (Pat.Pendeing)
They are Compact, Super Lightweight, and Unbeatable in Pumping Performance.

– Oil-less construction (no lubrication oil grease required) need no maintenance.
– High-pressure output comes from efficiency-oriented “no nonsense” design.
– Differential operation (one suction and two dischargers per cycle) keeps the discharge fluctuations very low.
– Close-coupled construction eliminates problems normally associated with the motor drive, such as belt slipping.
– Design that fully utilizes rolling frictions (utility model and design registration being applied for) keeps the starting torque to minimum and provides maximum output.
– Simple and rugged construction permits easy disassembly, cleaning, and re-assembly.
– Compact and super-lightweight structure makes it handy and portable.
– Newly developed universal nozzle permits almost every washing job with ease.

SPECIFICATIONS
Type: CLEANPAK. KYC-20A
Dimensions in mm, L×H×W: 250×210×230
Weight in kg: 9

Pump
Pressure in kg/cm2: 40(PSI 560)
Discharge in l/min: 2.9/3.5
Revolutions per minute: 1430/1740

Electric Motor
Type: Single-phase, 50/60Hz
Output in W: 250

APPLICATIONS
1. Air conditioner Cleaning.
2. Car engine compartment Cleaning.
3. Washing and finishing in plasterers’ work.
4. Food processing equipment Cleaning.
5. Farm tool and machine Cleaning.
6. Insecting machine Cleaning.
7. Steel Pipe Cleaning.
